Item Type:Led Power Supply
| Item | Ac24v1000w |
| Input voltage | 220V±5% AC |
| Output voltage | 24V±0.5V AC 41.6A |
| working hertz | 50/60HZ |
| Output Power | 1000VA |
| Ip Grade | Ip66/Ip68(rainproof /waterproof) |
| working Temp | Ambient temperature -25℃–45℃, relative humidity 85% |
| input wires | 1672-14#red |
| output wires | 1015-10#Black |
| Product Name | ADS-AC24V transformer |
| Input voltage | AC110V, AC220V |
| Power | 60w,150w,200w,260w.300w,360w,400w,500w,600w,800w，1000w,1500w,2000w,3000w,4000w,5000w |
| Output voltage | AC24v |

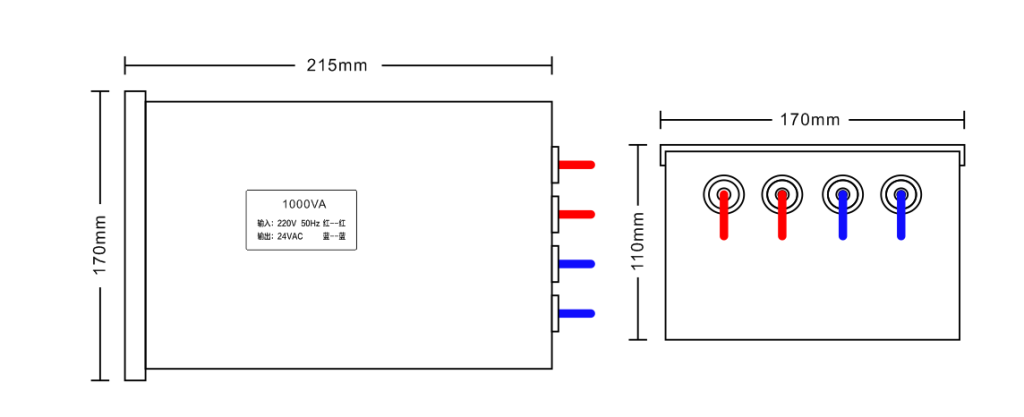

| Dimension | 215*170*110MM |
| Lifespan | 2 years warranty |
Ferris wheel, Carousels, Pirate ship, Pendulum, Bumper car, Tower and so on.
Logo, Signage, Channel letter, Signs, Exposed luminous characters, Billboard and so on.
KTV, Disco, Bar, Night club and other stage light.
Hotel, Shopping mall, Theater, Square and so on.
Castles, Robot, Mini carousels, Car, Mini train etc.
|

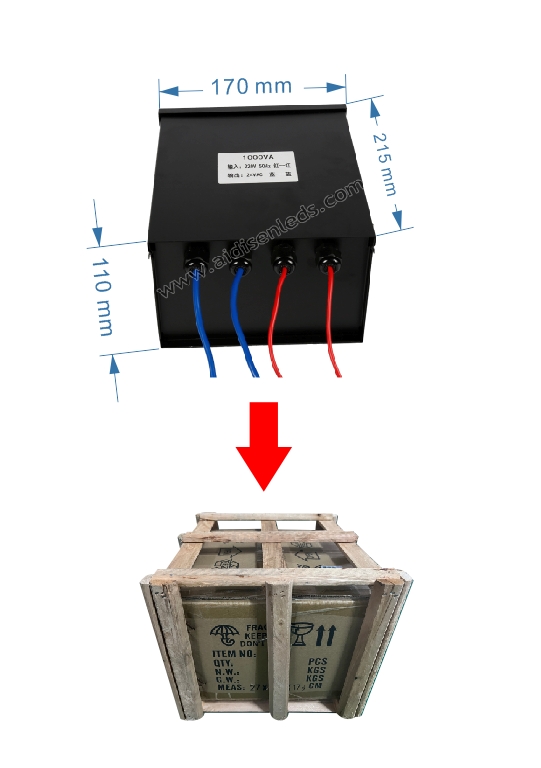

Weight/pcs |
Pieces/carton |
G.W/carton |
Carton size |
| 12kg | 2pcs | 24KG | 37*22*12CM |
1. When installing, please follow the installation instructions.
2. Before powering on for trial operation after installation, please check and calibrate the connections on each terminal block to make sure the input and output, AC and DC, positive and negative poles, and voltage are correct.
The value and current value are correct to prevent reverse and incorrect connections and avoid damage to the power supply and user equipment.
3. Before powering on, please use a multimeter to measure whether the live wire, neutral wire and ground wire are short-circuited, and whether the output terminal is short-circuited. It is best to start without load when powering on.
4. Do not exceed the nominal value of the power supply when using it to avoid affecting the reliability of the product. If you need to change the output parameters of the power supply, please contact our technical department before using the power supply.
Please contact us for consultation to ensure the effectiveness and reliability of use.
5. To ensure the safety of use and reduce interference, please ensure that the ground terminal is reliably grounded (the ground wire is larger than AWG18#)
