ADS-100144-144-SK6812

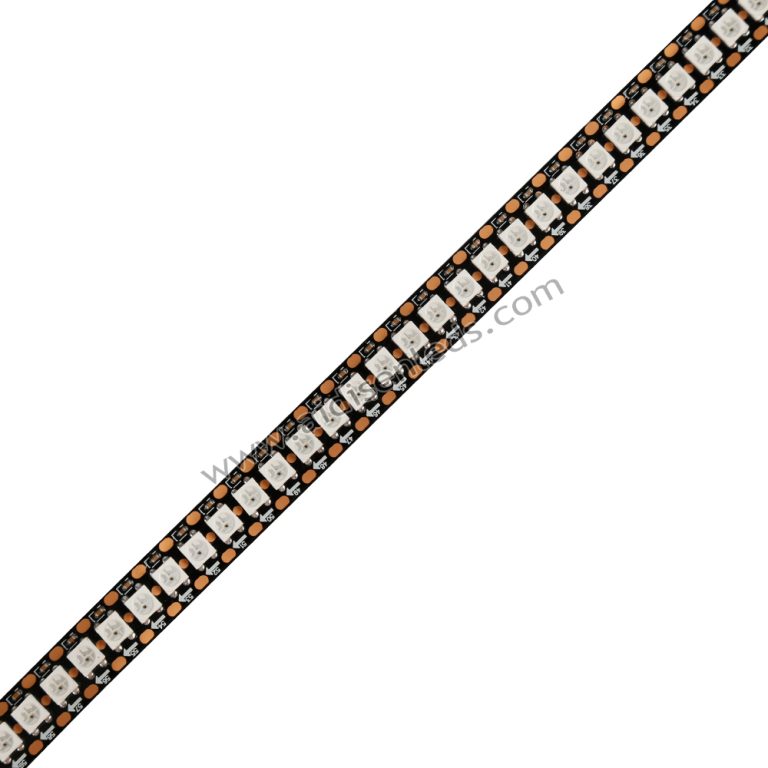

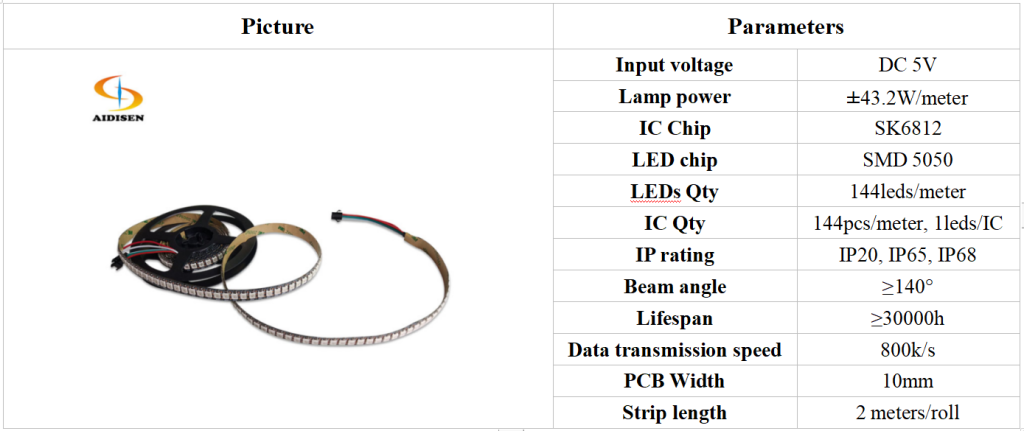

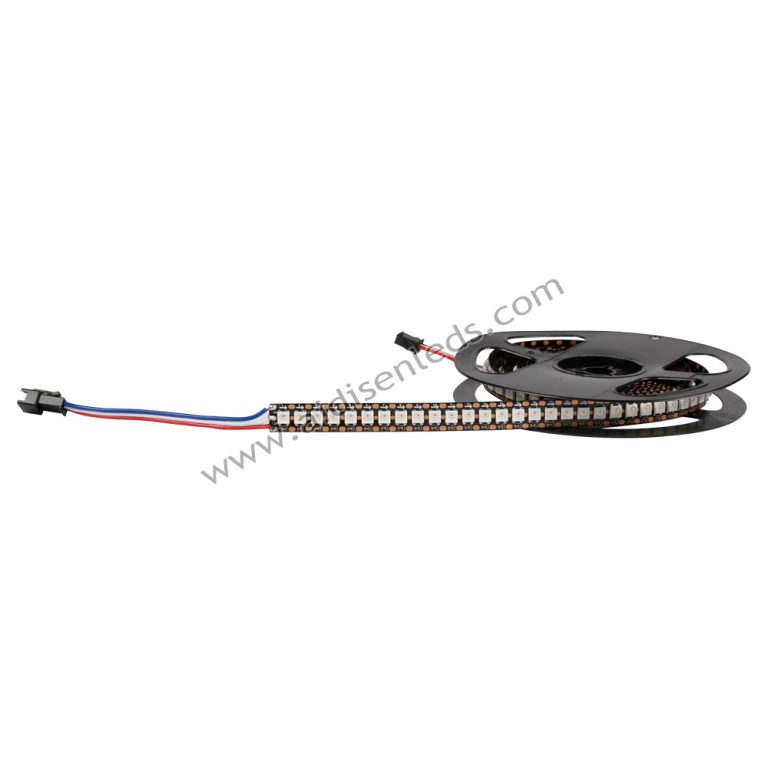

Item Type : Full color LED strip

Input voltage: DC 5V     Lamp power: ±43.2W/meter

IC Chip :SK6812            LED chip: SMD 5050

LEDs Qty: 144leds/meter      IC Qty: 144pcs/meter, 1leds/IC

IP rating:  IP20,IP65, IP68     Beam angle: ≥140°

Lifespan: ≥30000h      Data transmission speed: 800k/s

PCB Width: 10mm     Strip length: 2 meters/roll

Chat Now
Inquiry
Specifications
Features
Applications
Packing & Weight
Connection
  1. Flexible strip, this product is combined withPCB(black and white PCB), leds and silicone tube, a pair of F/M As well as a series of gluing process to ensure good water and UV resistance.
  2. It is a RGB programmable product, can achieve many different light effects by using a LED controller such as K-1000c.
  3. The features of this product are high brightness, low power dissipation, long lifespan, low voltage decline and excellent thermal management and lumen maintenance.
  4. This strip can be cut by yourself according to the length you need, 3leds/cut.
  5. Customized requests are available, for example: logo, non-waterproof or waterproof, and length (Maximum length is 5 meters)
  6. Types of waterproof, Surface expoxy waterproof, Silicon tube waterproof, Silicon tube and glue waterproof.
  7. This product has CE and RoHS certifications.

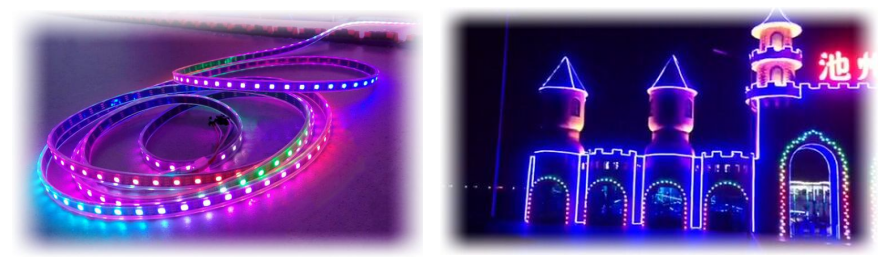

1.Amusement Park Rides Light

Ferris wheel, Carousels, Pirate ship, Pendulum, Tower and so on.

2.Advertisement Outdoor Signboard Backlight

Logo, Signage, Channel letter, Signs, Exposed luminous characters, Billboard and so on.

3.Stage Decoration Light

KTV, Disco, Bar, Night club and other stage light.

4.Commercial Light

Hotel, Shopping mall, Theater, Square and so on.

5.Home Decoration

Lighting, Home party, Christmas decoration, etc.

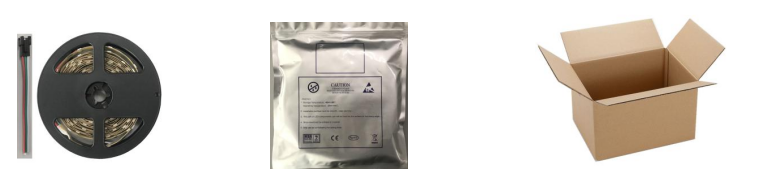

Weight/4 meters Meters/bag Meters/carton G.W/carton Carton size
0.22kg 4 meters 200 meters 12kg 48cm*35cm*26cm

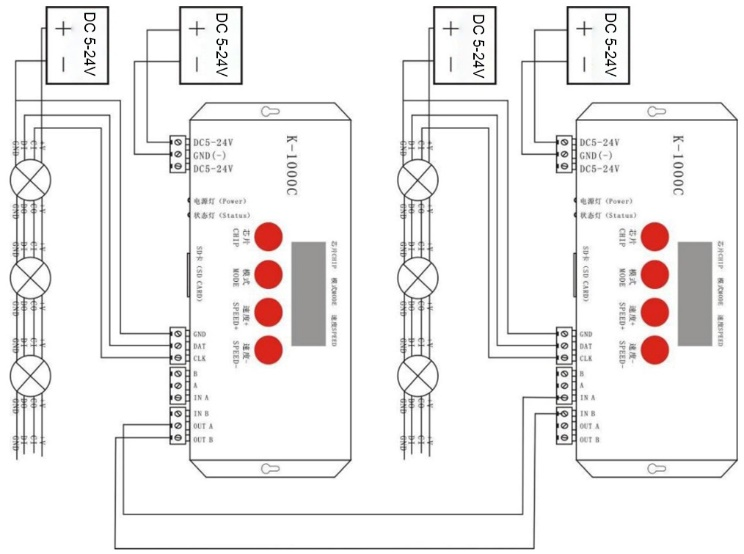

  1. Every strip has some small arrow on the PCB board, the arrow direction is OUTPUT, the tail direction is INPUT.
  2. Male connector (with pins) is signal output port, female connector (without pins) is signal input port.
  3. We suggest that every roll of strip connect to the power supply in parallel to avoid voltage decline.
  4. One controller can only support up to 2000 pixels, more than 2000 pixels, you need to cascade with multiple controllers.
